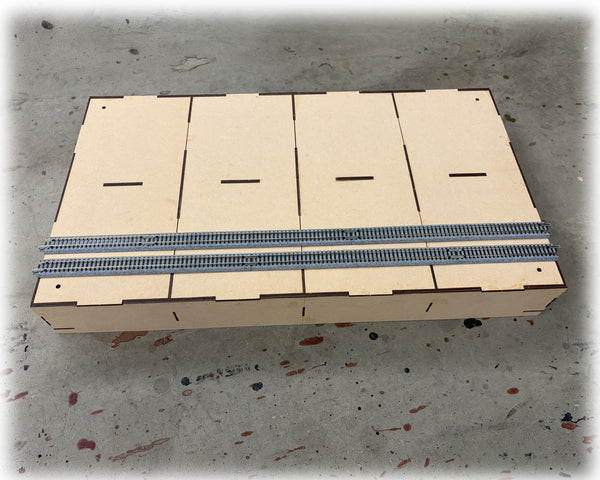

Laser cut MDF T-TRAK double module designed for quick and easy assembly to grow your modular N-Scale T-TRAK collection.
This module measures 24 3/8” wide x 14” deep x 3” high with included feet that can up to 1 1/2” of height and allow leveling of the module with an 1/8” Allen key from the top.

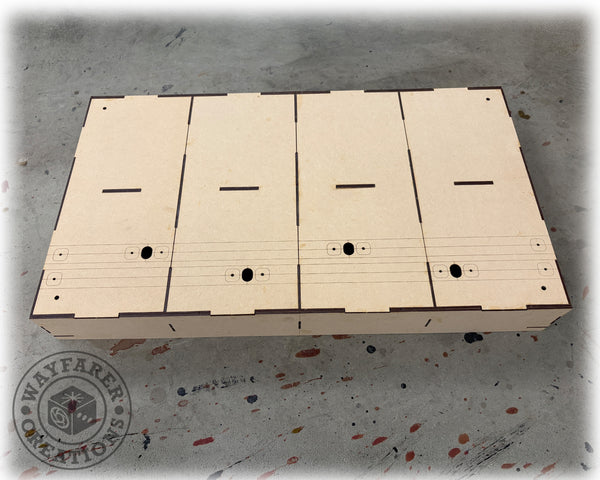

This module comes marked for two sets of Kato 20-020 and 2x 20-000 track with screw holes and cutouts to pass terminal unijoiners through to the underside. On the underside of the module, pre-cut holes allow the attachment of 10A terminal blocks. Track can either be attached with the included spacer blocks, glue, or using the predrilled holes using #0x1/4” truss head screws.
Glue is required for assembly. Masking tape may be used to help hold pieces together while glue sets. Some customers have noticed a slightly burnt smell from the laser cutting through, burning the edges; this quickly dissipates after assembly.

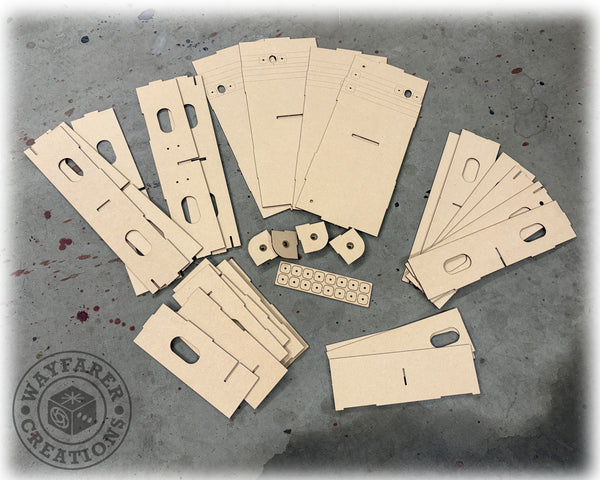

No track or additional accessories are included. This kit only contains the module pieces, spacer blocks, and feet.
Visit our YouTube Channel for an assembly video.
